Oracle Database Mobile Server Installation Steps

Step by Step Oracle Database Mobile Server Installation




Overall Oracle DB Mobile Server System Architecture,






Step 1: Pre-requisites,


   1. Oracle Database.
   2. Application Server,

     > Oracle Weblogic (I've used Oracle Weblogic 12c).
                   (or)
     > Oracle Glassfish.
                   (or)
     > Oracle Application Server.



Step 2: Installing Database Mobile Server,


Unzip the DMS_11.2.0.0.0_LINUX.zip



> Go to Disk1--> you can find two folders one for linux 32 bit and another one linux 64 bit, In my case I'm using linux64 bit--> Go to Linux64 folder and run the runInstaller file.




> Here you need to mention JDK_HOME path.





> First Install Mobile Server





> For testing purpose I've installed Mobile Server Demo Application


> Here you have to mention your application home path, In my case I've used Oracle Weblogic 12c.



> Need to specify JDK_HOME (Kindly maintain same JDK version)





> During configuration step, It will ask you create Repository.



> Mention your Database hostname, port number and service or SID.


> Give Database SYSTEM user and password.

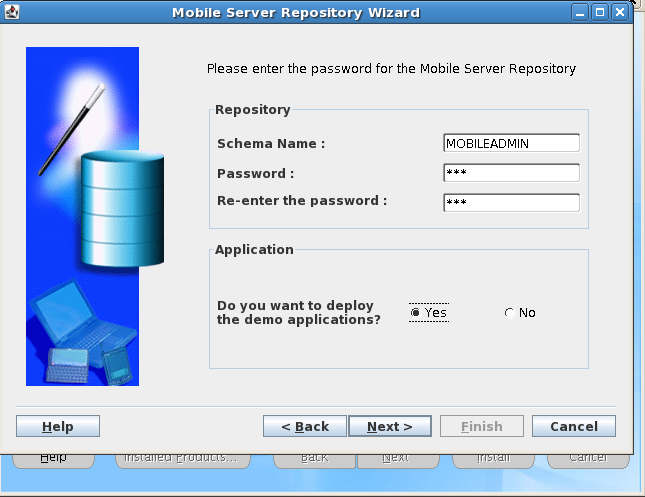

> Give Mobile Server Repository password and select deploy demo application option (if you installed demo application before).




> Here I'm creating new domain in weblogic sever.





> After Mobile Server installation cross check the repository.log file.


Step 3: Install Mobile Development Kit,


Again run the same runInstaller file and specify the JDK_HOME path.



> Select the Mobile Development Kit option,









Step 4: Testing the Mobile Database Workbench.


> After installation check whether the Mobile Database workbench is working or not.


> Go to-->mobile client home location-->mobile-->sdk-->bin--> run the oramdw.sh file.




> Here you can create new project.
